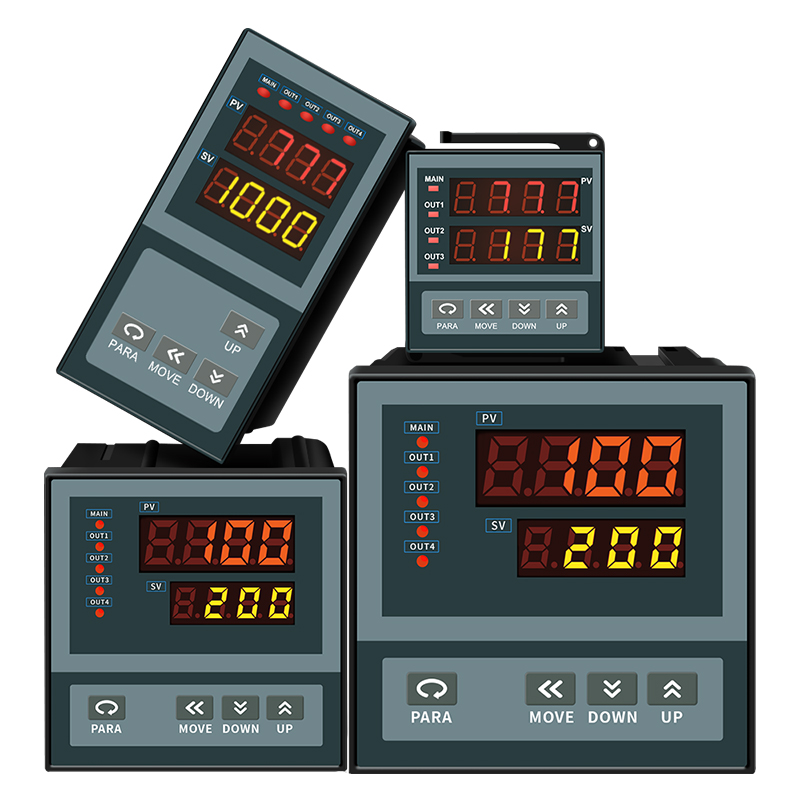

Input Signal T.C : K、S、E、J、T、B、N RTD : Cu50、Pt100 Linear voltage : 0-5V,1-5V,0-10VDC Linear current : 0-10mA, 4-20mA (should connect external precision resistor, 500Ω for 0-10mA or 250Ω for 4-20mA) Extended signal: one input signal can be customized (Please advise the signal index no. when non-linear input) Measure range: Thermocouple: K ( -50 ~ 1300℃ )、S ( -50 ~ 1700℃ )、T ( -200 ~ 350℃ ) 、E ( 0 ~ 800℃ )、J ( 0 ~ 1000℃ )、B ( 300 ~ 1800℃ )、N ( 0 ~1300℃ )
RTD: Cu50 ( -50 ~ 150℃ ) 、Pt100 ( -200 ~ 600℃ )、Cu100 ( -50 ~ 150℃ ) Linear input: -999 to +9999 defined by user. Measure accuracy: 0.2 grade when RTD, linear voltage, linear current, T.C input with free points cold junction compensation or copper resistance compensation) 0.2%FS±2.0℃ when T.C input with temperature compensation on cold-junction inside the meter Respond time: ≤0.5s when the filtering parameter FiL=0 Control way: On-off, Auto PID self-tuning, manual PID Output Specification: Relay alarm outputs: 220VAC/2A, 220VAC/2A SSR voltage driving output: 12VDC0/30mA SCR contactless output: 100-240VAC/0.2A (continually), 2A(when 20mS, the repeated period time is more than 5S) Auxiliary power supply: 5VDC, 12VDC, 24VDC Linear current retransmission output: 4-20mA default or 0-10mA or customized Communication output: RS485, RS232 serial interface Alarm Function High limit, higher limit, low limit, lower limit, dFHA, dFLA , up to 4 alarm output. Power Supply:85-240VAC,-15%,+10% / 50-60Hz;OR 24VDC/AC,-15%,+10% Power Consumption: ≤5W Ambient Temperature:0-50℃ Ambient Humidity:<85%RH Front Panel Dimension 96x96mm, 160x80mm, 80x160mm, 48x96mm, 96x48mm, 72x72mm, 48x48mm●Panel Cutout Dimension 92+0.5x 92+0.5mm, 45+0.5 x 92+0.5mm, 92+0.5x45+0.5mm, 152+0.5 x76+0.5mm, 76+0.5 x 152+0.5mm, 68+0.5 x 68+0.5mm, 45+0.5 x45+0.5mm. Depth Mounting Surface: ≤100mm.

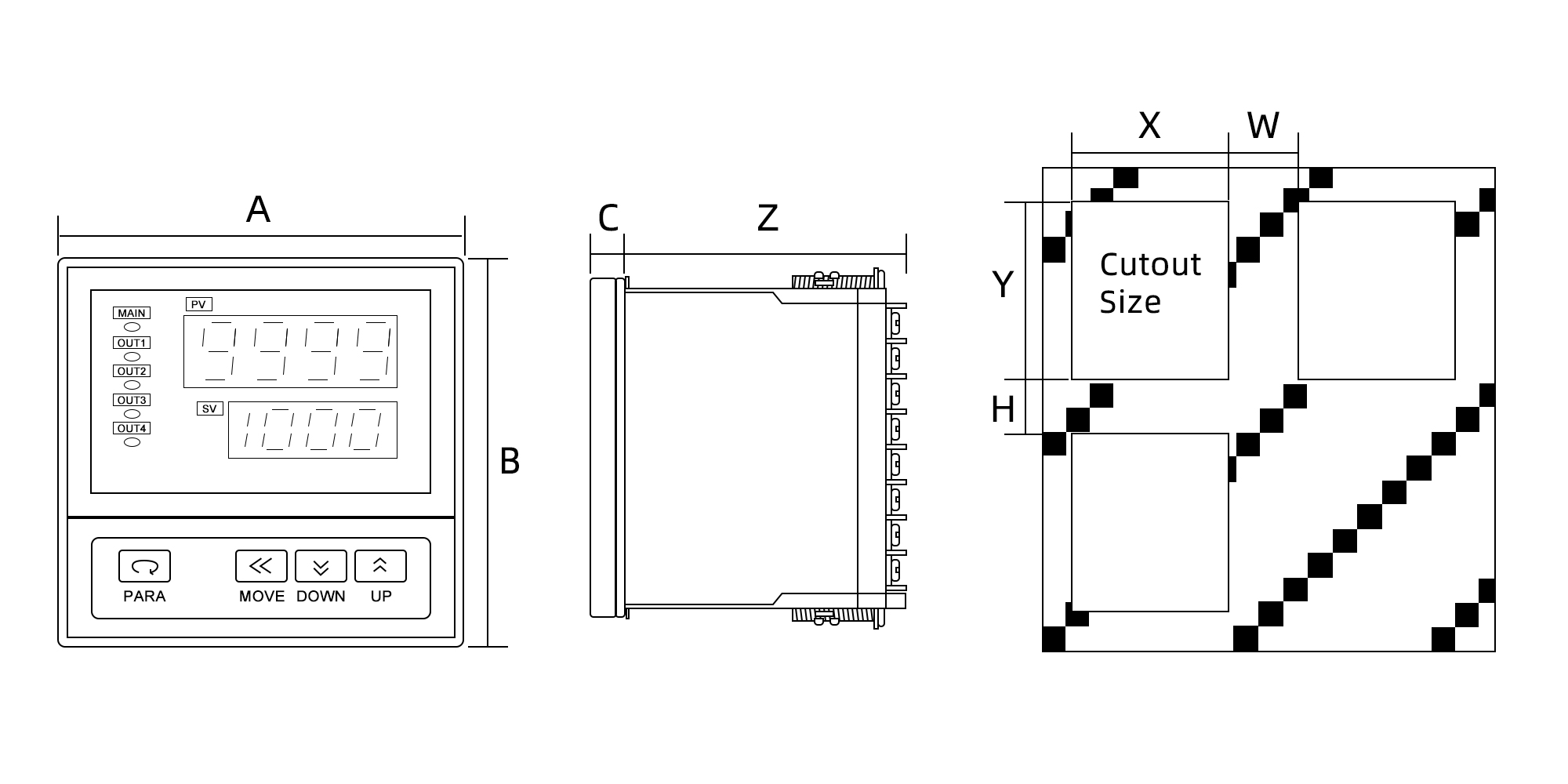

size/model | A | B | C | D | E | F |
A | 96 | 48 | 96 | 80 | 160 | 72 |
B | 96 | 96 | 48 | 160 | 80 | 72 |
C | 12 | 12 | 12 | 10.5 | 10.5 | 12 |
Z | 100 | 100 | 100 | 84 | 84 | 100 |
X | 92+0.5 | 45+0.5 | 92+0.5 | 76+0.5 | 152+0.5 | 68+0.5 |
Y | 92+0.5 | 92+0.5 | 45+0.5 | 152+0.5 | 76+0.5 | 68+0.5 |
W | 30 | 30 | 8 | 30 | 8 | 30 |
H | 8 | 8 | 30 | 8 | 30 | 8 |
Size Code | Front Panel Width x Height | Cutout Width x Height | Depth Behind |
A | 96X96mm | 92+0.5 x92+0.5mm | 100mm |
B | 48x96mm | 45+0.5 x 92+0.5mm | 100mm |
C | 96x48mm | 92+0.5x45+0.5mm | 100mm |
D | 160x80mm | 152+0.5 x76+0.5mm | 84mm |
E | 80x160mm | 76+0.5 x 152+0.5mm | 84mm |
F | 72x72mm | 68+0.5 x 68+0.5mm | 100mm |
G | 48x48mm | 45+0.5 x45+0.5mm | 100mm |
