| Accuracy | ±（0.2%FS+1）digit |
| Power supply | 100-240VAC or 24VAC |
| Input Signal | T.C: K, S, E, J, T, B, N, R, WRe526, WRe325 RTD: PT100, CU50, CU100 Linear voltage: 0-5V, 1-5V Linear current: 0-10mA, 4-20mA Frequency input: 0-5KHZ, one channel Others: 0-20mV,0-60mV, 0-100mV, 0-500mV |
| Output Module | 16 channels relay alarm output (Max) 4-20mA Retransmission output RS485 communication port RS232 print port DC5V/12V/24VDC aux. power supply USB port |
| Record time | Flexible setting interval time: 1s, 2s….3600s Record Time: 45days |
| Screensaver Protection | Screensaver time setting for LCD background light auto off when no any operation in order to decrease the power consumption |
| Power-off Protection Time | The setting parameters and history data can be kept by FLASH MEMORY, memorized forever if power off. Hardware clock built in for still accuracy running. |
| Environmental | temperature:0-50℃, humidity:0-85%RH |

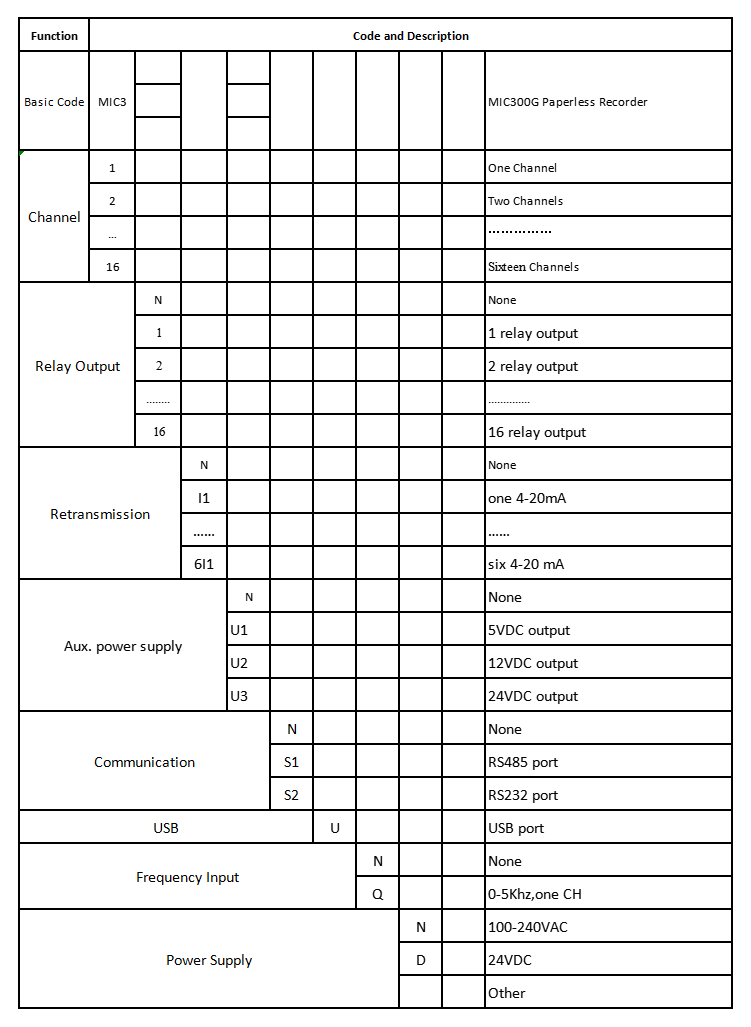

KH300G Selection of Paperless Recorder For Example : MIC-316G-16-U1-S1-U Meaning: Channel -------Input 16Channels Relay Output-------16 relays output Aux. power supply--------5VDC output Communication-------RS485 port Power Supply--------100-240VAC USB Port

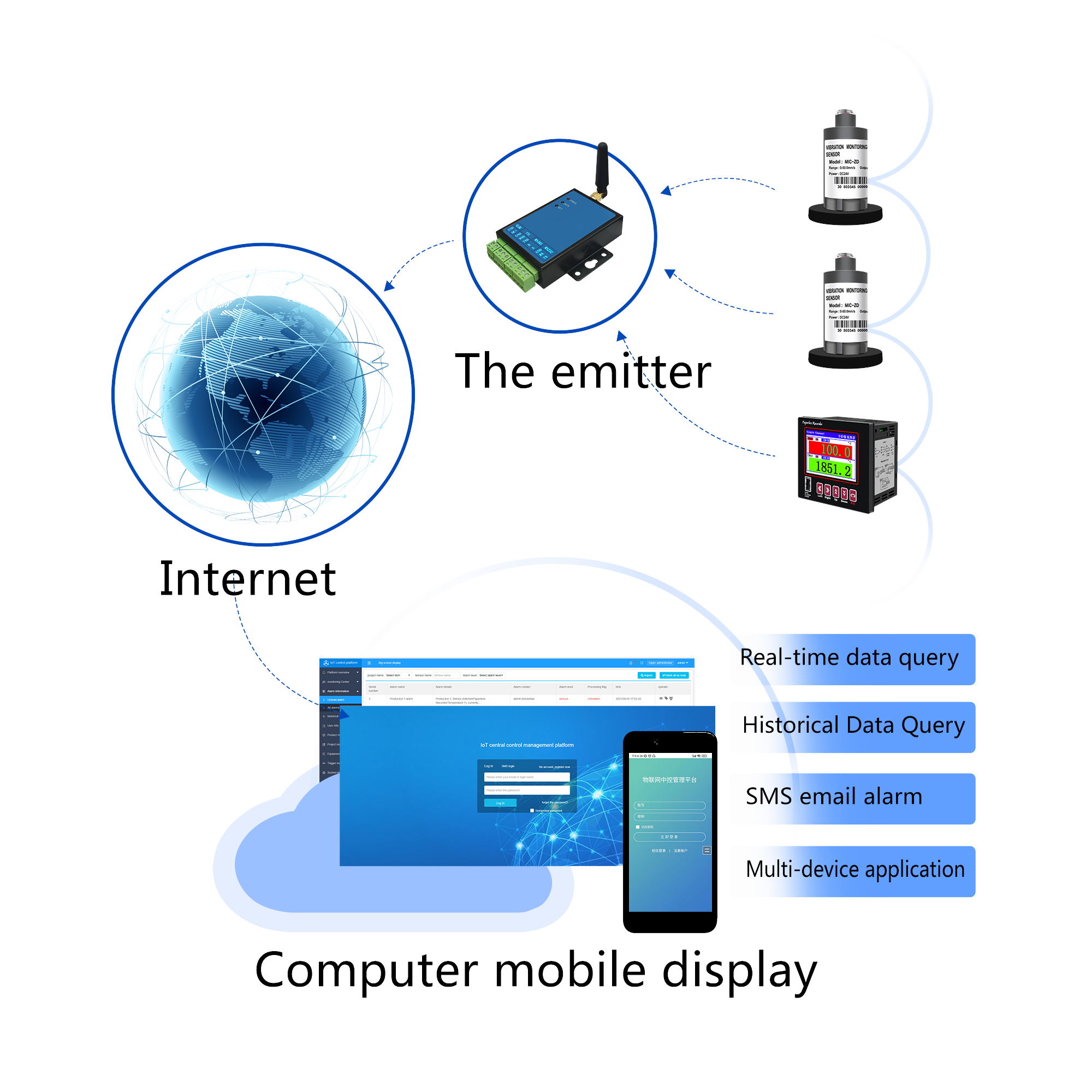

Cloud acquisition software, only NEED 4G wireless module communication, no wiring, easy to install! Mobile phone computer remote view data or graph, at the same time with SMS alarm function.
The equipment uses RS485 communication connection acquisition card to achieve real-time recording, monitoring and query
