Device real-time monitoring query
The equipment uses RS485 communication connection acquisition card to achieve real-time recording, monitoring and query

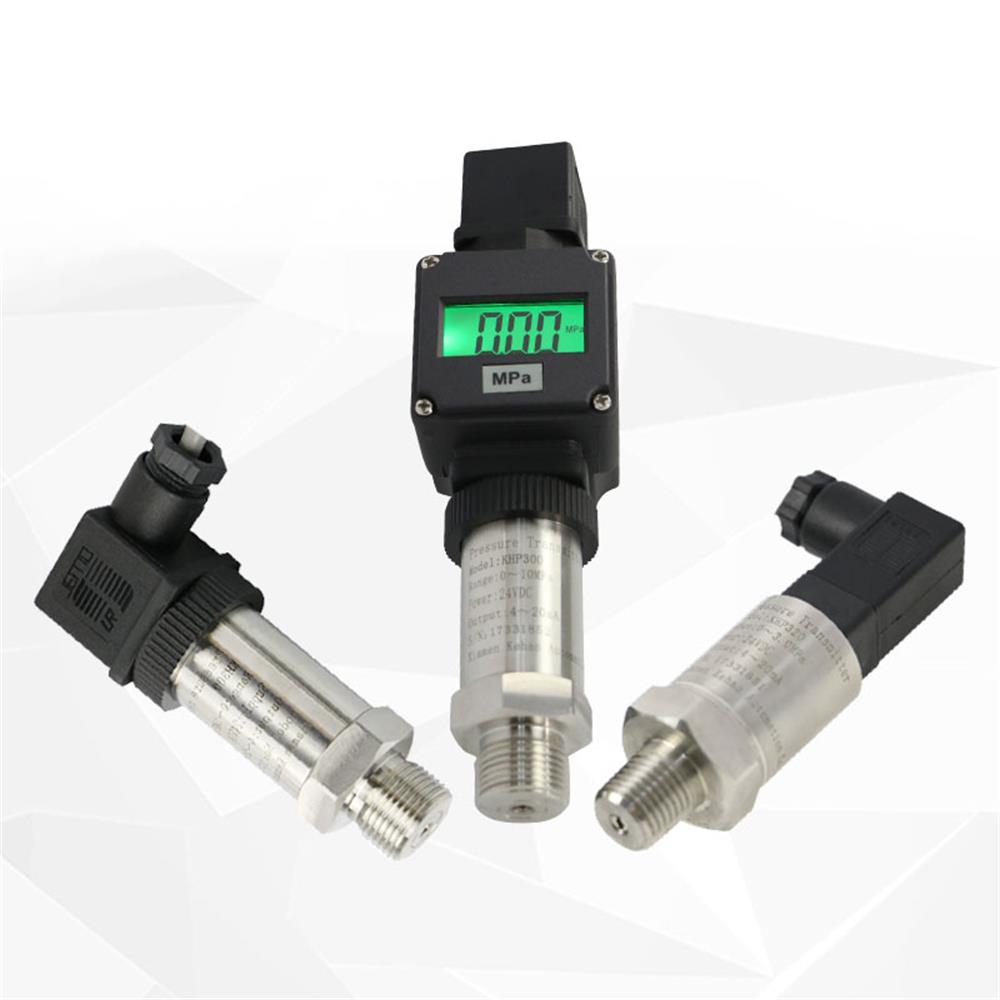

| Model | Universal pressure transmitter Sensor |
| Accuracy | ±0.5%F.S; ±0.3%F.S |
| Operational Mode | Gauge, Absolute, Negative |
| Measuring range | -100kpa…..0-10kpa …….100Mpa |
| Measured medium | Gas, liquid, oil compatible with 316 stainless steel |
| Power supply | 12-24VDC, standard: 24VDC±5%, ripple less than 1% |
| Output signal | 4-20mA, 0-5VDC, 1-5VDC |
| Diaphragm material | 316SS |
| Process Connection material | 316SS |
| Housing Material | 304SS |
| Process Connection: | M20X1.5, M12X1, 1/2NPT, 1/4NPT; G1/2, G1/4, G1/8 etc |
| Electrical Connection type | Cable (standard: 1meter); Hirschman plug; plug connection |
| Insulation resistance | 100MΩ/250VDC |
| Load resistance | 4-20mA: ≥800Ω, 0-5VDC: ≥50KΩ |
| Fluid Process Temperature | -20 to 80℃ |
| Working temperature | -20 to 80℃ |
| Storage temperature | -40 to 125℃ |
| Temperature Shift | ±1.5%FS（＠-20℃～85℃） |
| Sensitive Shift | ±1.5%FS（＠-20℃～85℃） |
| Stability | 0.25% %F.S per year |
| EMC surge | （IEC61000-4-5）2KV |
| EMC static | （IEC61000-4-2）contact arc: 8KV,air arc:15KV |
| Overload pressures | 150%F.S |
| IP protection | IP 65 |
