Element

PT100,PT1000,CU50,CU100, Other

Test quality standard

IEC584, IEC1515, GB/T16839-1997, JB/T5582-91

Class

Class I, Class II

Element wire diameter

Single type: 2-8mm, Double type: 3-8mm, Customized

Protection tube materia

304, 310S, 316etc

Element wire diameter

Single type: 2-8mm, Double type: 3-8mm, Customized

Measurement range

PT100: -200 to 500℃ for Class A, -200 to 600℃ for Class B
Cu50 ( -50 ~ 150℃ ) , Cu100 ( -50 ~ 150℃ )

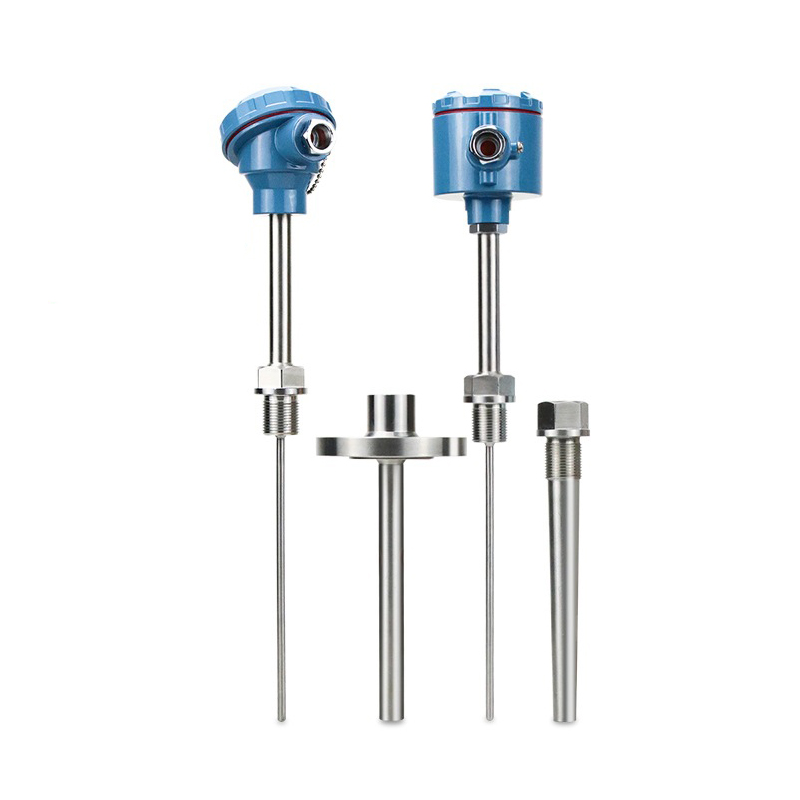

Mount method

fixed or flexible thread, flange or not

Thread size

n M6x1.5 M8x1.25,M10x1.5,M12x 1.5, M16x1.5, 1/2NPT,1/4NPT,
or customized

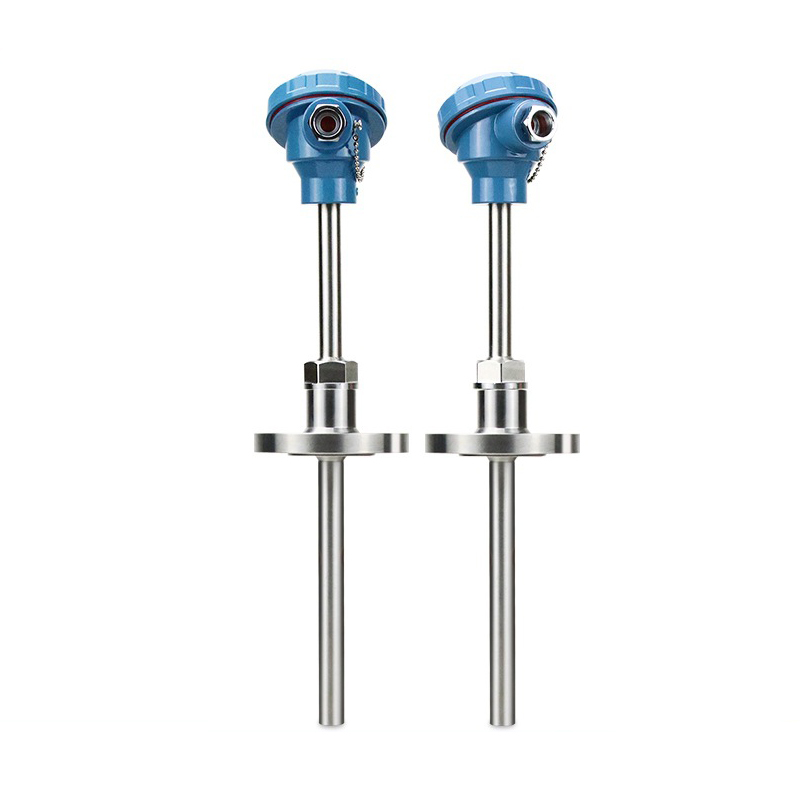

Flange size

customized

Connecting cable

PVC cable, high temperature proof cable, silica gel cable, PTFE cable, Mica cable etc

Connecting head

water-proof case, splash-proof case, explosion-proof case
